Overview

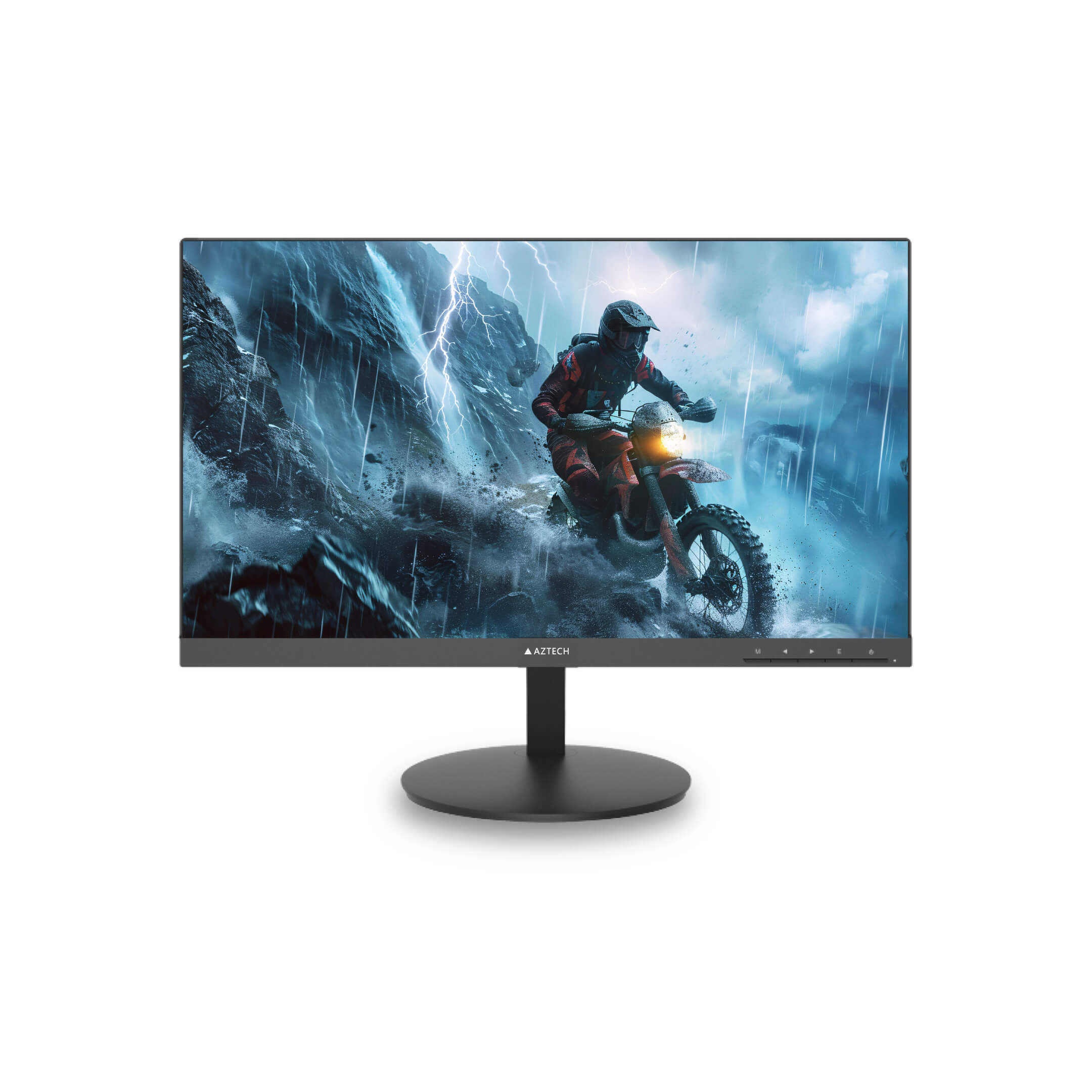

The AZTECH AZ-M22E-FSVH is a 22-inch Full HD LED monitor designed for clear and vibrant visual display. It features a wide viewing angle of 178° both horizontally and vertically, ensuring consistent color and clarity from almost any angle. The monitor supports a resolution of 1920×1080 with a 72% NTSC color gamut, delivering true color display and sharp images suitable for various professional and personal uses.
Built with a VA panel and a refresh rate of 100 Hz, the monitor offers smooth visuals with a brightness of 250 cd/m² and a contrast ratio of 3000:1. It includes versatile connectivity options with VGA and HDMI inputs, making it compatible with a range of devices. The design is slim with a narrow bezel and supports wall mounting via VESA 100×100 mm, enhancing its adaptability for different setups. Additionally, the monitor is equipped with dual 1.5W speakers and supports multi-language on-screen display menus for user convenience. Its durable design supports 24/7 operation, making it suitable for continuous use in demanding environments.
| Specification | Details |
|---|---|
| MODEL | AZ-M22E-FSVH |
| Backlight | ELED |
| Panel Size | 22″ |
| Resolution | 1920 × 1080 |
| Color Support | 16.7M |
| Brightness (cd/m²) | 250 |
| Contrast Ratio | 3000:1 |
| Response Time (ms) | 20 |
| Pixel Pitch (H × V) (mm) | 0.24 × 0.24 |
| Viewing Angle (H/V) | Horizontal 178°; Vertical 178° |
| Display Size (mm) | 478.6 × 260.2 |
| Refresh Rate | 100 Hz |
| Operation Hour | 24/7 |
| Bezel Width | 2.0mm (top/left/right), 22.0mm (bottom) |
| Color Gamut | 72% NTSC |
| Surface Treatment | Haze 25%, 3H |
| LCD Technology/Panel Type | VA |
| Video Input | 1 × VGA (MAX: 1920 × 1080@60 Hz) and 1 × HDMI (MAX: 1920 × 1080@100 Hz) |
| Audio Input | 1 × Audio in (3.5mm Mini-Jack) |
| Speaker | 2 × 1.5W |
| VESA (mm) | 100 × 100 |
| Wall-mounted Thread | 4-M4 screw hole, 10 mm Deep Thread |
| Multi-Language | 12 (English, German, French, Spanish, Italian, Dutch, Chinese, Japanese, Korean, Russian, Portuguese, Turkish) |
| Input Voltage | DC 12V, 2A |
| Typical Power Consumption (W) | <24 |
| Standby Power Consumption (W) | <0.5 |
| Product Dimensions (W × H × D) (mm) | 493.1 × 290.8 × 50.5 (No Pedestal) 493.1 × 378.6 × 200.0 (With Pedestal) |
| Package Dimensions (W × H × D) (mm) | 12 (English, German, French, Spanish, Italian, Dutch, Chinese, Japanese, Korean, Russian, Portuguese, Turkish) |
| Multi-Language | 557 × 370 × 140 |
| Operating Temperature | 0°C ~ 40°C |
| Operating Humidity | 10%-90% (No Condensation) |
| Storage Temperature | -10°C ~ 60°C |
| Storage Humidity | 10%-90% (No Condensation) |
| Material | Plastic |
| Lifetime (h) | 30000 |
| Certifications | CE, FCC |
| Standard | 1 × 1.5m HDMI cable, 1 × Adapter, 1 × Pedestal, 1 × Quick Guide |
| MTBF (h) | 50000 |
